SDP Indoor Taps

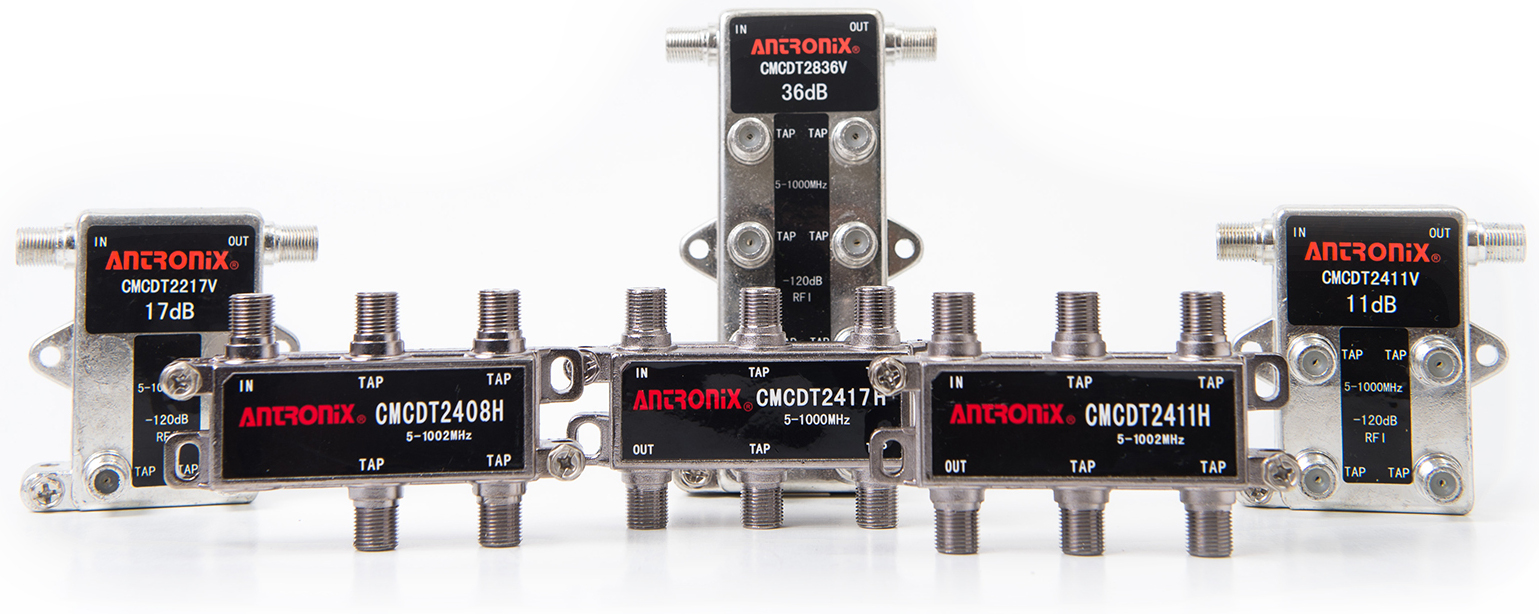

Antronix CMCDT2000H and CMCDT2000V series digital indoor multi-taps are manufactured of the highest quality RF components and ideal for two-way drop networks. Integrating a drop splitter and directional coupler into a single design provides more efficient installations, reduced potential failure points, component savings, and reduced cost of network ownership. Proprietary nickel alloy composite plating over zinc alloy diecast housing provides excellent environmental hardness. Used primarily for high level signal applications, such as cable modems.

Features

  • 2,4,8 Output configurations available in a variety of output values
  • 6 kV ring wave surge protection on all ports
  • Low intermodulation design
  • Zinc alloy diecast housing with nickel alloy plating
  • Directional coupler and splitter integrated into the same housing
  • 15 psi sealed SCTE compliant F-ports
  • 100% soldered back plate
  • Machine threaded F-ports
  • Available with SCTE compliant CamPort® or Eclipse Contact Technology F-port

Benefits

  • Ideal for digital and cable modem applications
  • High surge resistance to withstand harsh environments
  • Unique plating for unmatched corrosion resistance
  • Comprehensive line of digital taps: horizontal and vertical port configurations

Tap Values

  • 2 Output: 4 dB, 8 dB, 11 dB, 14 dB, 17 dB, 20 dB, 23 dB, 26 dB, 29 dB, 32 dB
  • 4 Output: 8 dB, 11 dB, 14 dB, 17 dB, 20 dB, 23 dB, 26 dB, 29 dB, 32 dB
  • 8 Output: 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB, 33 dB
  • ECT F-port 2000 Series: CMCDT2000H, CMCDT2000V
  • CamPort® 3000 Series F-port: CMCDT3000H, CMCDT3000V
