Filters

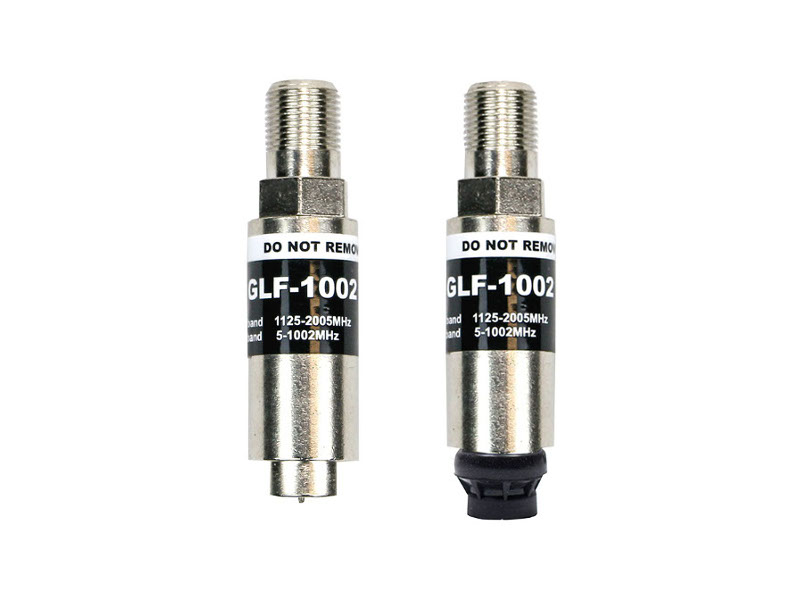

Point-of-Entry Filters GLF Point-of-Entry Filters GLF-1002 Combo Point-of-Entry Filter

Antronix filters ensure optimal network performance by maintaining desired signal paths and minimizing disturbances in service delivery.

MoCA Point-of Entry Filters

Our GBLF and GLFT MoCA filters keep signals from interfering in adjacent subscriber homes, passing the legacy frequency band with very little loss and rejecting the MoCA frequency band. They reflect MoCA energy back into the home and improve MoCA network performance.

With the Antronix MoCA filter installed at an optimum location, the MoCA network works with a maximum loss of 55 dB (1.15 GHz) between the master and client set-top boxes, meeting the critical MoCA path loss budget and signal level guidelines for MoCA communications.

Our MoCA filters come in several dB rejection designs and are available with a pre-installed EPDM weather seal for improved resilience in outdoor or environmentally challenging applications. The GBLF1002 with integrated ground block provides streamlined performance and efficiency for tight installations.

Features & Benefits

  • Blocks out MoCA frequency band
  • Passes legacy frequency band (5-1002 MHz) with minimal signal loss
  • Compact in-line low pass filter
  • Available with several dB rejection values to meet any system's requirements
  • Solid machine brass housing with nickel plating
  • Available with weather seal and security shield
  • Small size allows for ease of installation in tight spaces
  • Designed for both indoor and outdoor applications

MidSplit Rejection Filters

Antronix's GRF-54-85 filter is a powerhouse of performance in networks with legacy components. The MoCA 2.0-compatible inline filter provides midsplit 85MHz functionality and is designed to eliminate distortions and enhance component function.

Features & Benefits

  • Prevents overloading legacy devices when migrating to midsplit
  • High rejection in the 54-85 MHz band
  • Minimal insertion loss
  • Bandwidth to 1675
  • Solid machine brass housing with nickel plating
  • Designed for indoor and outdoor applications
