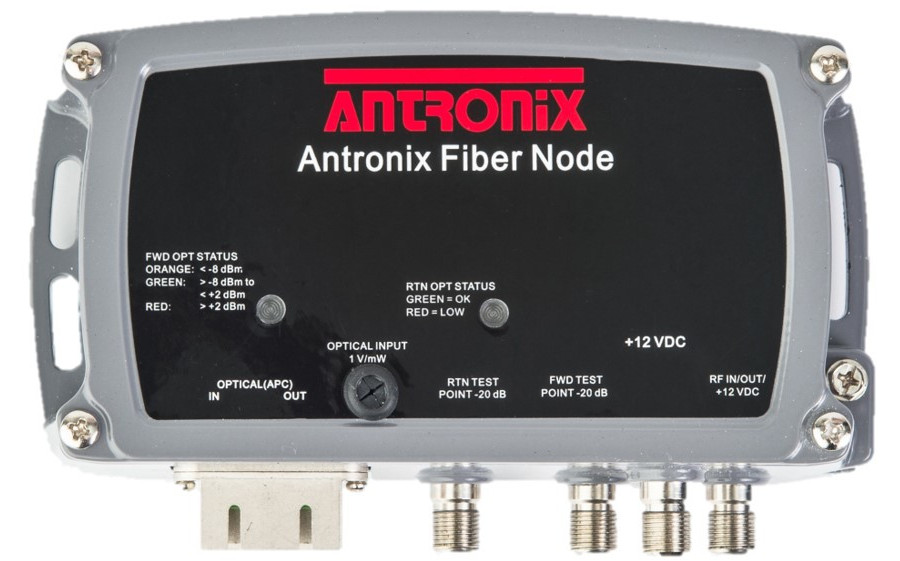

AFN Optical Mini Node

The Antronix AFN is a technologically advanced, cost-effective, bi-directional optical fiber node engineered for excellent distortion performance, and for operation in tight spaces and high demand applications.

The unit is available in two versions:

The "H" version has constant RF output over the entire optical input window.
The "L" version's RF output varies with optical input.

AFNs are available with various optical return transmitters, are designed to receive a full complement of signals (1200 – 1600 nm), and meets full specifications with optical input levels ranging from -8 dBm to 2 dBm.

The receive RF path includes provisions for Antronix's E-Option plug-ins for sloped RF output, as well as user-adjustable padding for optimal forward path setup. An optional return path optical transmitter is available in two versions: Fabry-Perot (FP) and Distributed Feedback (DFB).

Application

The AFN allows the service provider to cost-effectively improve network performance by bringing fiber closer to the end-user. Its small size enables placement in most NID boxes, while the robust housing can be used in both indoor and outdoor installations. Ideal for MDUs, such as campuses, hospitals, schools, government institutions, and businesses.

Features

  • 38 dBmV constant RF output for a -8 to 2 dBm optical input
  • Full 1 GHz bandwidth
  • FP, DFB or CWDM DFB return transmitter options
  • Patented CamPort® F-connectors
  • Small, compact housing
  • E-Option plug-in for signal conditioning 54-1002 MHz
  • 1 V/mW external optical power test point
  • External tri-color dBm LED
  • Low power consumption

Benefits

  • Cost-effective, reliable service transmission of telephony, video and high-speed data
  • Ideally suited for small business, MDU, and educational applications
  • Easy to install
  • Field accessible controls to ease device setup
  • Small, compact housing
  • Decreased operational costs
  • DOCSIS compliant
